Rectiverter Eltek Telecom Power System Scalable 120kW 230/400VAC 3 Phase Big System

Beijing Ding Ding Future Technology Co.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

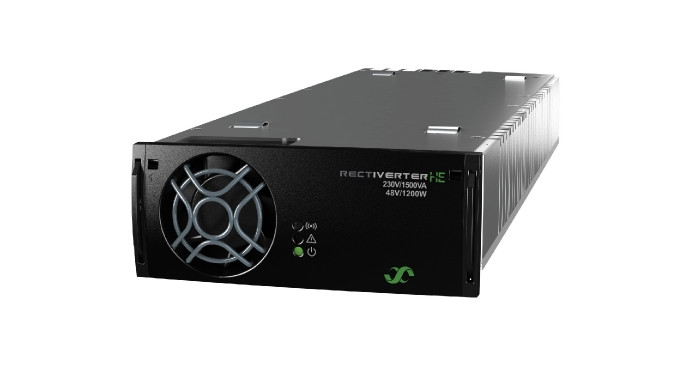

Rectiverter Eltek Telecom Power System Scalable 120kW 230/400VAC 3 Phase Big System

  • 1
  • 2

Brand Name : Eltek

Model Number : CDEJ6042.xxxx

Certification : CE.UL

Place of Origin : CN

MOQ : 1

Payment Terms : L/C,T/T

Supply Ability : 400 sets /month

Delivery Time : 8-10 weeks

Packaging Details : wooden cartons

Brand : Eltek

Produft name : Indoor Rectiverter scable cabinet

Protection level : SPD , LLVD. BLVD

Input current : 1920 ADC

Max input AC : 320 - 475 VAC

Max input DC : 40 - 58 VDC

Mains configuration : 230/400VAC 3 phase (Y)

Max AC output : 346 - 415 VAC

Max output power : 90 kva/ 72kw

DC output power : 72 kW

DC output current : 1500 ADC

DC max voltage : 58 VDC

IP grade : IP20/IP21

Contact Now

Rectiverter Eltek Telecom Power System Scalable 120kW 230/400VAC 3 Phase Big System

Eltek Rectiverter-Indoor system Scalable 120 kW system with optional A+B, AC input (CDEJ6042.xxxx)

The scalable Rectiverter indoor system provides backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for DC loads and battery charging.


Rectiverter Scalable System 120 kW

The system has a maximum load capacity of 108 kW, which is dynamically variable to provide AC outputs up to 90 kVA / 72kW and also feed DC loads up to 72 kW with built in AC & DC distribution.
When used in combination with the optional B-input (dual AC input) which eliminates the need for a traditional ATS (Automatic Transfer Switch), the Rectiverter indoor system represents the ultimate in flexibility and scalability.


Key features

400 VAC 3 phase (Y) input

400 VAC 3 phase (Y) output

48 VDC input/output

Max 90 kVA / 72 kW AC output

Max 72 kW DC output

AC Distribution

DC distribution option

A+B option (dual AC input)

LVBD option

Up to 4 battery strings

Built in transfer technology

150% overload capability, 15S

600% quick trip current 20 ms

Hot pluggable

Smartpack2 controller

Operates in paralell with Flatpack2 rectifiers

Global compliance

Patented HE technology

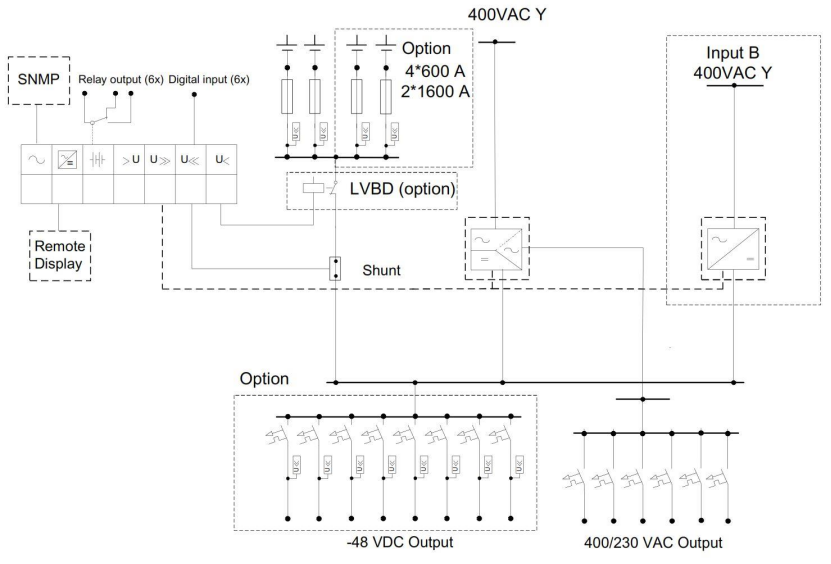

SINGLE LINE DIAGRAM 120 KW + 108 KW B-INPUT


Rectiverter Eltek Telecom Power System Scalable 120kW 230/400VAC 3 Phase Big System


Parameters :



Models / ordering information
120 kW + 108 kW B-input
Product family
CDEJ6042.xxxx
AC OUTPUT DATA
Voltage (default) / (adjustable range)1)
400 VAC 3 phase (Y) / 346-415 VAC
Frequency (default inverter mode)
50 Hz (adaptive)
Frequency (set-able inverter mode)
50Hz, 60Hz or last synced 50/60Hz (adaptive)
Power maximum (continuous / overload (<15s) )
72 kW (90 kVA) / 120kVA
Current maximum/phase (continuous / overload (<15s) )
130 ARMS / 174 ARMS
Current (maximum) Quick trip/phase (20ms)
640 A (6 x nominal)
Hold up (Voltage dips) (before switching to battery)
> 5 ms @ 72 kW load
THD
< 1.5 % at resistive load


Output features

Module: Fuse in L and N , Hot pluggable

1 pole or 3 pole AC distribution (connection directly on MCB)

Max breaker capacity according to recommended max breaker for rectiverter module

DC OUTPUT DATA
Voltage (default) / (adjustable range)
53.5 VDC / 43 - 58 VDC
Power (maximum @nominal input)
72 kW 2)
Current (maximum @VOUT ≤ 48 VDC)
1500 A 2)
Hold up time, maximum output power
>10ms; VOUT > 41 VDC
Output features
Short circuit proof, Over voltage Shutdown
INPUT DATA
AC Mains Input Voltage(3 phase Y)
320-475 VAC,
AC Current/phase(at nominal output voltage) (depending on module type) 140-240 ARMS 4)
Frequency (default: sync range)
47-53 & 57-63 Hz
Frequency (set-able: sync range)
47-53 Hz, 57-63 Hz or both (adaptive)
Power Factor / THD
> 0.99 at 50% load or more / < 3.5%
DC Voltage nominal / extended range (no overload)3)
45 - 58 VDC / 40 - 45 VDC
DC Current (maximum)
1920 A / 2700 A during overload (15s)
Input features

Module : Fuse in L and N, Hot pluggable, Varistor, Hot pluggable

AC input individual screw terminals 150 mm2 for L1-L3, N & PE

BATTERY BREAKER
1-pole battery breaker 2*TPS 2 holder (800-1600 A) 4*TPS 00 holder (250-600 A)
OPTIONS
B-input maximum power (with FP2 HE, 2 kW rectifiers)
72 kW
B-input maximum power (with FP2 HE, 3 kW rectifiers)
108 kW
DC distribution (connection directly on breaker)
1-125 A, 1 pole breaker (max 30 pc 18 mm, max 20 pc 27 mm)
LVBD (1-pole)
1800 A
OTHER SPECIFICATION
Efficiency >96% (mains mode (AC/AC and AC/DC)), >94% (inverter mode (DC/AC))
Protection Class IP 20

Operating temperature -40 to +55°C (-40 to +131°F), humidity 5 - 95% RH non-condensing
Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxDxH] / Weight 1200 x 600x 2000mm (23,7 x 23,7 x 78,8”) / 300 kg (1100 lbs)
DESIGN STANDARDS
Electrical safety EN 60950-1, EN 62040-1 UPS safety
EMC

ETSI EN 300 386 V.1.6.1, FCC CFR 47 Part 15

EN 61000-6-1 /-2/-3/-4, EN62040-2



Environment

ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3)

Normal operating conditions to be as per IEC/EN 62040-3:2011 clause 4.1 RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant

1) Output voltage ranges configured in factory and have individual keying in top chassis

3) 40 - 45 VDC: reduced performance - no power boost and increased voltage THD on AC output.

2) AC load has priority. Maximum available DC output power and current is dependent on instant

AC load and AC input voltage; i.e maximum 48kW/1000 A at full AC power and nominal input for 230VAC.

4) If DC voltage is pulled below 43V the input current may increase above this level



* The indoor Rectiverter Cabinet with AC &DC feed in one cabinet
