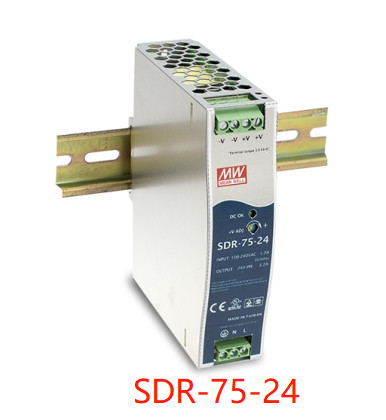

SDR-75-24 Meanwell Din Rail Power Supply 12V 24V 48V 85%-89%

  • 1
  • 2

Brand Name : MEAN WELL

Model Number : SDR-75-24

Certification : CE

Place of Origin : CN

MOQ : 1 piece

Price : 1 USD

Payment Terms : L/C,T/T

Supply Ability : 3000 pieces per month

Delivery Time : 8-10 weeks

Packaging Details : cartons

Brand : MEAN WELL

Product Namee : SDR series

Output currency : 9.37A -2.34A

Rated power : 75W

Input frequency : 47 ~ 63Hz

DC voltgae : 12V -24V-48V

Efficiency : 85% -89%

Protection : over voltgae / over load

Dimension : 32*125.2*102mm

Weight : 0.51G

Contact Now

Mean Well Brand 75W Single Output Industrial DIN Rail with Power Supply SDR-75 seriesSDR-75-24 Meanwell Din Rail Power Supply 12V 24V 48V 85%-89%


Mean Well Brand 75W Single Output Industrial DIN Rail with Power Supply SDR-75 series

Features:

Metal case, slim size

1∅, full range input (230VAC only for SDR-960)

94% high efficiency and complete functions

Built-in active PFC function (except SDR-75)

Assemble on industrial rail TS-35 / 7.5 or 15

Built-in DC OK relay contact (except SDR-75)

130%~150% peak load capability by models

Current sharing function (SDR-480P/960)




Technical


MODEL SDR-75-12 SDR-75-24 SDR-75-48







OUTPUT

DC VOLTAGE 12V 24V 48V
RATED CURRENT 6.3A 3.2A 1.6A
CURRENT RANGE 0 ~ 6.3A 0 ~ 3.2A 0 ~ 1.6A
RATED POWER 75.6W 76.8W 76.8W
PEAK CURRENT 9.375A 4.69A 2.34A
PEAK POWER Note.6 112.5W (3 sec.)
RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 12 ~ 14V 24 ~ 28V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.) 80ms/230VAC 20ms/115VAC at full load



INPUT

VOLTAGE RANGE Note.7 88 ~ 264VAC 124 ~ 370VDC [DC input operation possible by connecting AC/L(+),AC/N(-)]
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.5% 89% 90%
AC CURRENT (Typ.) 1.4A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ.) 30A/115VAC 50A/230VAC
LEAKAGE CURRENT <1mA / 240VAC



PROTECTION

OVERLOAD Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-powr on to recover
150 ~ 170% rated power, constant current limiting with auto-recovery within 3 seconds, and then shut down o/p voltage after 3 seconds, re-powr on to recover
OVER VOLTAGE 14 ~ 17V 29 ~ 33V 56 ~ 65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 100℃±10℃ (RTH2) detect on main of power transistor
Protection type : Shut down o/p voltage, re-powr on to recover after temperature goes down



ENVIRONMENT

WORKING TEMP. -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 60℃)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6


SAFETY & EMC

(Note 4)

SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved, design refer to GL ;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32). BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY

Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2),

BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved


OTHERS

MTBF 2670.8K hrs min. Telcordia SR-332 (Bellcore) ; 479.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 32*125.2*102mm (W*H*D)
PACKING 0.51Kg; 28pcs/15.3Kg/1.22CUFT
