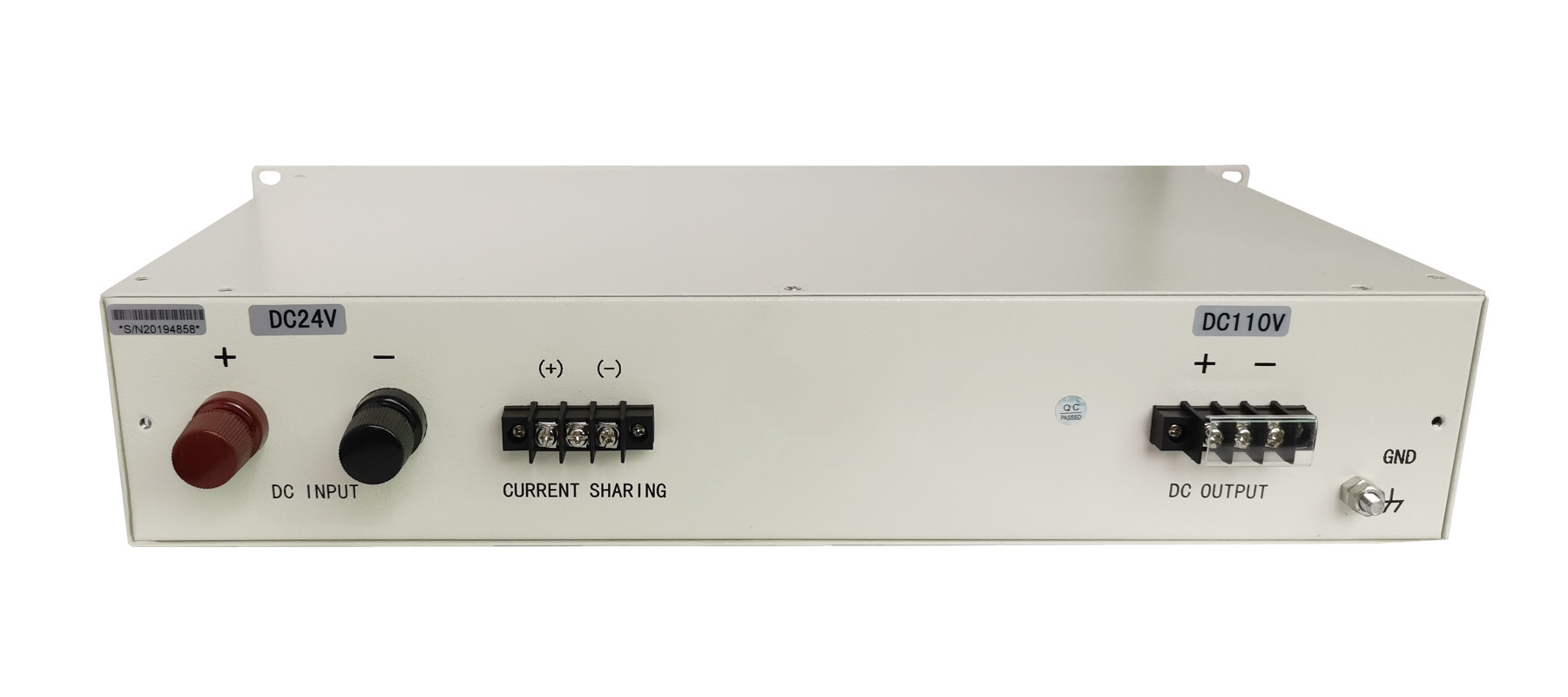

When reliability is non-negotiable, the RCT2000D Series isolated DC-DC converters stand apart. Designed to convert power from batteries or DC sources into rock-solid DC outputs, they ensure unwavering voltage stability, minimal electromagnetic interference, and energy-efficient performance. Their robust architecture tackles continuous operation and high ambient temperatures with ease, incorporating reinforced isolation, overcurrent protection, and advanced heat dissipation. Supporting a broad input spectrum (24-220VDC nominal) and both grounding configurations, these rackmount units deliver pure, dependable 24-220VDC power—perfect for applications where downtime is not an option, such as data centers, medical equipment, and heavy machinery.
Technical Parameter
| Technical Data |
| | D50-10-18 |
| INPUT |
| Voltage Range | 95~135Vdc |
| Rated Voltage (Vdc) | 110Vdc |
| DC Input Current | 20A |
| OUTPUT |
| Rated Voltage | 48VDC |
| Voltage ADJ. Range | 42~58VDC |
| Output Capacity | 2200W |
| Rated Output Current | 0~50A |
| Float Chg Voltage ADJ.Range | 42V~58VDC |
| Equ. Chg Voltage ADJ.Range | 42V~58VDC |
| Output Voltage Protection point | 60Vdc±1V |
| Output Over Current Protection Point | ±5% |
| Ripple & Noise(Max) | 200mVp-p |
| Peak—peak noise | ≤150mV |
| Voltage Tolerange | ±1% |
| Line/Load Regulation | ±0.5% |
| COMMUNICATION | |
| Modbus RTU | Rs485 |
| Dry Contact | Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail. |
| PROTECTIVE FEATURE |
| Over Load Protection | Iout_Max±0.5A |
| Protection Type: Constant Current Limiting |
| Over Voltage Protection | 60VDC |
| Protection Type:Shut Down O/P V. Recovery Automatically after 60s |
| Over Temperaure Protection | 85±5℃ Detect on Heatsink of Poer Transistor |
| Protection type:shut Down O/P V, Recovery after Temp. Normal Temp. |
| Short Circuit Protection | Aviailable |
| ENVIRONMENT |
| Operating Temp./Humidity | -20 ~ + 45℃/ 20~90% RH non- Condensing |
| Storage TEMP./Humidity | -40~+85℃/10~95% |
| Cooling | Temperature control wind cooling ,Side to Side airflow |
| MTBF | >10,000 hours |
| SAFETY |
| Withst and Voltage | I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC |
| Solation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH |
| OTHERS |
| Dimension | W482 *D240*H88mm |
| Weight | 8KGS |
