Brand Name : Custom -made
Model Number : D50-12-14
Certification : CE
Place of Origin : China
MOQ : 1pcs
Price : USD 1
Payment Terms : T/T
Supply Ability : 3000 pieces per month
Delivery Time : 1-2 weeks
Packaging Details : wooden cartons
Model : D50-12-14
Rated Voltage (Vdc) : 110Vdc
DC Input Current : 10.9A
Output Rated Voltage : 24VDC
Voltage ADJ. Range : 21~29VDC
Output Capacity : 1200W
Rated Output Current : 0~50A
Output Voltage Protection point : 285Vdc±1V
Ripple & Noise(Max) : 200mVp-p
Voltage Tolerange : ±1%
Technical Parameter
Technical Data | ||
| D40-12-14 | D50-12-14 |
INPUT | ||
Voltage Range | 90~135Vdc
| |
Rated Voltage (Vdc) | 110Vdc | |
DC Input Current | 8.72A | 10.9A |
OUTPUT | ||
Rated Voltage | 24VDC | |
Voltage ADJ. Range | 21~29VDC | |
Output Capacity | 960W | 1200W |
Rated Output Current | 0~40A | 0~50A |
Float Chg Voltage ADJ.Range | 21V~29VDC | |
Equ. Chg Voltage ADJ.Range | 21V~29VDC | |
Output Voltage Protection point | 30Vdc±1V | |
Output Over Current Protection Point | ±5% | |
Ripple & Noise(Max) | 200mVp-p | |
Peak—peak noise | ≤150mV | |
Voltage Tolerange | ±1% | |
Line/Load Regulation | ±0.5% | |
COMMUNICATION |
| |
Modbus RTU | Rs485 | |
Dry Contact | Out Fail,Output Voltage Fail, TEMP Fail, Battery Fail. | |
PROTECTIVE FEATURE | ||
Over Load Protection | Iout_Max±0.5A | |
Protection Type: Constant Current Limiting | ||
Over Voltage Protection | 60VDC | |
Protection Type:Shut Down O/P V. Recovery Automatically after 60s | ||
Over Temperaure Protection | 85±5℃ Detect on Heatsink of Poer Transistor | |
Protection type:shut Down O/P V, Recovery after Temp. Normal Temp. | ||
Short Circuit Protection | Aviailable | |
ENVIRONMENT | ||
Operating Temp./Humidity | -20 ~ + 45℃/ 20~90% RH non- Condensing | |
Storage TEMP./Humidity | -40~+85℃/10~95% | |
Cooling | Temperature control wind cooling ,Side to Side airflow | |
MTBF | >10,000 hours | |
SAFETY | ||
Withst and Voltage | I/P-O/P:1.5KVAC I/P-FG: 0.5KVDC O/P-FG: 0.5KVDC | |
Solation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH | |
OTHERS | ||
Dimension | W482 *D240*H88mm | |
Weight | 8KGS |
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
![]() |

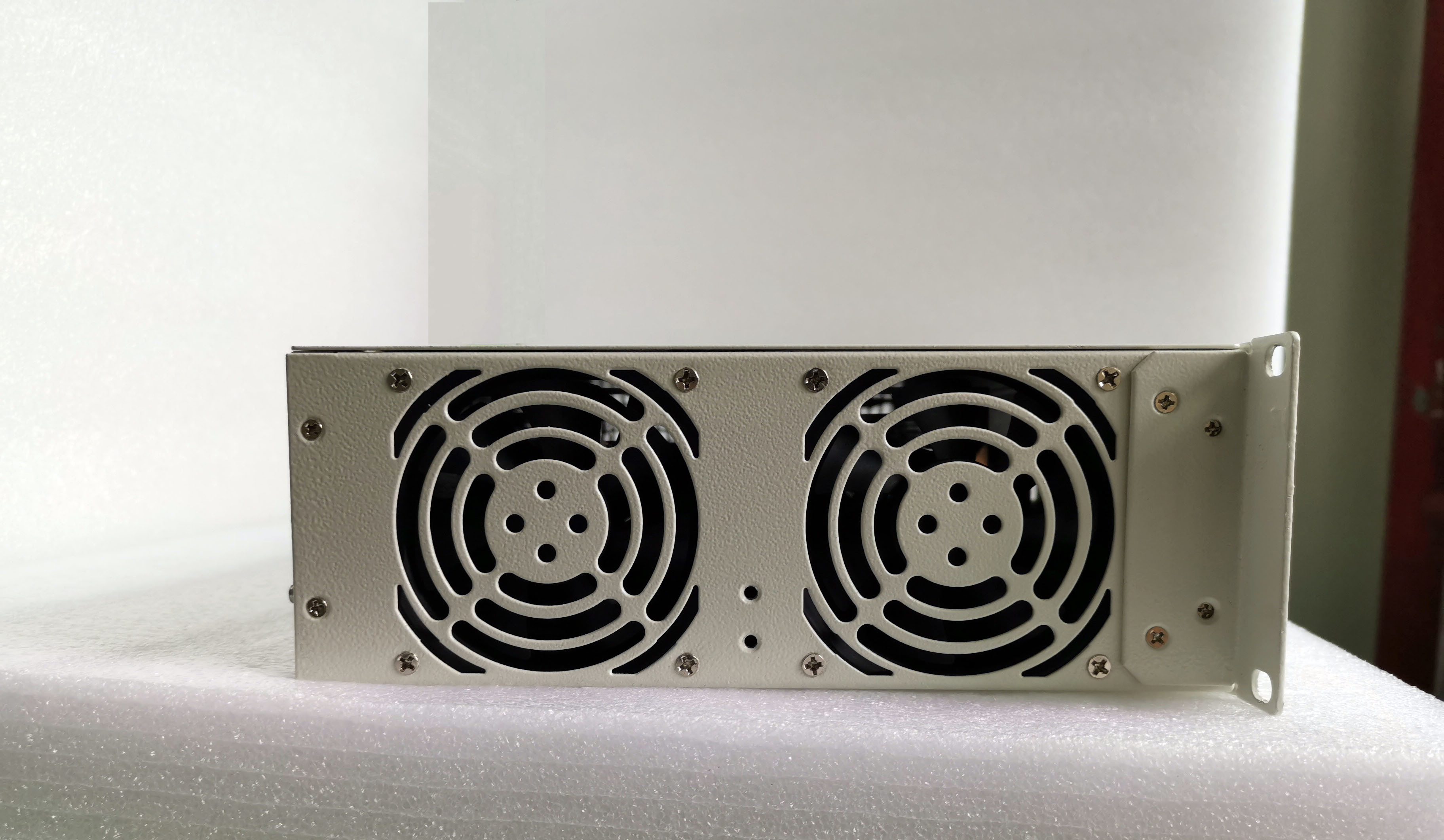

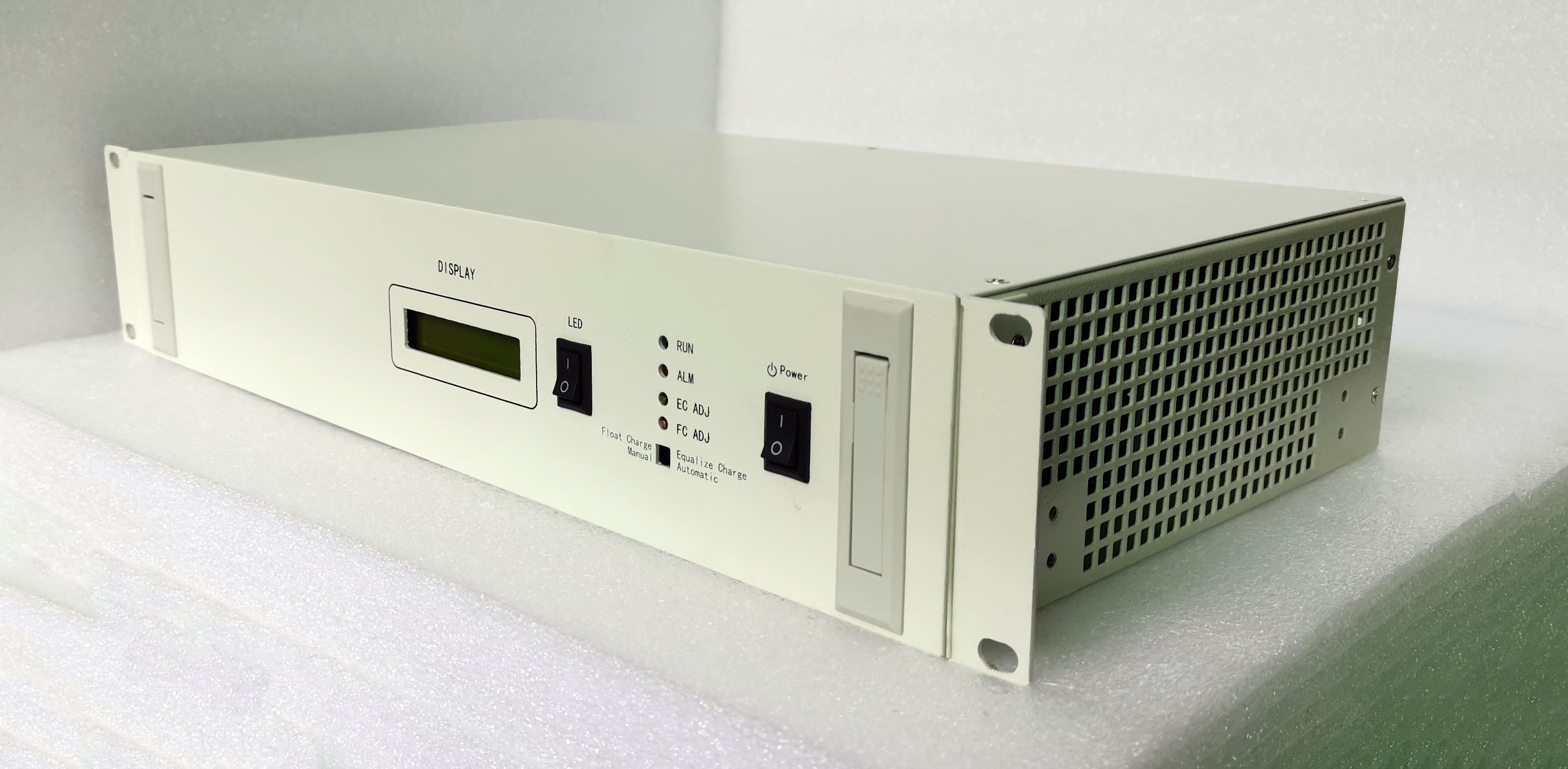

19" In RCT2000D Series Isolated DC-DC Converters Input 110vdc Output 24vdc 1200w D50-12-14 Images |
