Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12

Beijing Ding Ding Future Technology Co.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12

  • 1
  • 2

Brand Name : MEAN WELL

Model Number : BIC-2200

Certification : CE

Place of Origin : CN

MOQ : 1 piece

Price : 1 USD

Payment Terms : L/C,T/T

Supply Ability : 3000 pieces per month

Delivery Time : 8-10 weeks

Packaging Details : cartons

Brand : MEAN WELL

Product Name : AC-DC Bidirectional Power Supply

Output currency : 180A-22.5A

Rated power : 2160W

Input frequency : 47 ~ 63Hz

DC voltgae : 12V-48V

Input Voltage : 90 ~ 264VAC / 127 ~370VDC

Protection : over voltgae / over load

Dimension : 330*140*41mm (L*W*H)

Weight : 4 KG

Contact Now

Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12

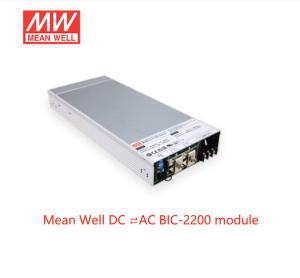

Mean Well BIC-2200 AC-DC Bidirectional Power Supply 2160W 12V 180A output BIC-2200-12

Features:

1U low profile design

Full digital design with 93% conversion efficiency for both AD/DC and DC/AD conversion

Ultrafast switching time between AD/DC and DC/AC of 1ms.

CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation

Active current sharing up to 11000W(4+1)

< 3% Low THD in both conversion mode

Force charging and recycle mode with CANbus commend(Optional)

Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP

5 years warranty




Technical


AC to DC Direction MODEL BIC-2200-12 BIC-2200-24 BIC-2200-48 BIC-2200-96






OUTPUT

DC VOLTAGE 12V 24V 48V 96V
RATED CURRENT 180A 90A 45A 22.5A
RATED POWER 2160W
FULL POWER VOLTAGE RANGE 12 ~ 15V 24 ~ 28V 48 ~ 65V 96 ~ 112V
RIPPLE & NOISE (max.) Note.2 160mVp-p 260mVp-p 300mVp-p 480mVp-p
VOLTAGE ADJ. RANGE 10 ~ 15V 19 ~ 28V 38 ~ 65V 76 ~ 112V
CURRENT RANGE 0 ~ 180A 0 ~ 90A 0 ~ 45A 0 ~ 22.5A
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1800ms, 60ms/230VAC at full load




INPUT

AC VOLTAGE RANGE 180 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.98/230VAC at full load
EFFICIENCY (Typ.) Note.5 90% 93% 93% 93%
AC CURRENT (Typ.) 11A/230VAC
INRUSH CURRENT (Typ.) COLD START 35A/230VAC
LEAKAGE CURRENT <2mA/230VAC
TOTAL HARMONIC DISTORTION <3%(@load=100%/230VAC)
DC to AC Direction


INPUT

(Note.9)

RATED INPUT POWER 1800W
FULL POWER VOLTAGE RANGE 12 ~ 15V 24 ~ 28V 48 ~ 65V 96 ~ 112V
DC VOLTAGE RANGE 10 ~15V 19 ~ 28V 38 ~ 65V 76 ~ 112V
MAX. INPUT CURRENT 150A 75A 37.5A 18.75A




OUTPUT

RATED OUTPUT POWER (Typ.) (@230V, 50Hz) 1725VA
VOLTAGE RANGE 180 ~ 264VAC determined by AC main
FREQUENCY RANGE 47 ~ 63Hz determined by AC main
AC CURRENT (Typ.) 7.5A/230VAC
POWER FACTOR (Typ.) 0.99/230VAC at full load
EFFICIENCY (Typ.) Note.5 90.5% 93% 93% 93%
TOTAL HARMONIC DISTORTION <3%(@load=100%/230VAC)




PROTECTION


OVER LOAD

105 ~ 115% rated output power
AC to DC Constant current limiting, shut down DC O/P voltage 5 sec. after DC O/P voltage is down low, re-power on to recover
DC to AC Not accurable with constant power design
SHORT CIRCUIT Shut down O/P current, re-power on to recover
OVER VOLTAGE 17.6 ~ 20.8V 33.6 ~ 39.2V 72.6 ~ 86V 134 ~ 157V
Protection type : Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE Shut down O/P voltage, recovers automatically after temperature goes down
ISLANDING PROTECTION Shut down AC O/P voltage, re-power on to recover




FUNCTION

REMOTE ON-OFF CONTROL By electrical signal or dry contact Short: Power ON Open: Power OFF Please refer to the Function Manual infollowing
BIDIRECTION SWITCH TIME (Typ.) 1ms
ALARM SIGNAL Isolated TTL signal output for T-Alarm, DC-OK and Fault. Please refer to the Function Manual in following pages
AUXILIARY POWER 12V@0.5A tolerance±5%, ripple 150mVp-p


BATTERY MODE RATED

CURRENT(default) Note.7

AC to DC 160A 80A 40A 20A
Can be adjusted by communication
DC to AC 120A 64A 32A 16A
Can be adjusted by communication



ENVIRONMENT

WORKING TEMP. -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 45℃)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes









SAFETY & EMC

(Note 4)

SAFETY STANDARDS UL62368-1, CAN/CSA C22.2 No.62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1(by request) approved
WITHSTAND VOLTAGE Note.8 I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:500VAC
ISOLATION RESISTANCE Note.8 I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH



EMC EMISSION

BS EN/EN55032
Parameter Standard Test Level / Note
Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -----





EMC IMMUNITY

BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level / Note
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11

>95% dip 0.5 periods, 30% dip 25 periods,

>95% interruptions 250 periods


OTHERS

MTBF 462.9K hrs min. Telcordia SR-332 (Bellcore) ; 46K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 330*140*41mm (L*W*H)
PACKING 2.9Kg; 4pcs/12.6Kg/1.25CUFT


Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12


Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12


Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12

Mean Well AC-DC Bidirectional Power Supply 2160W 12V 180A Output BIC-2200-12
